K168R108減速機詳細信息

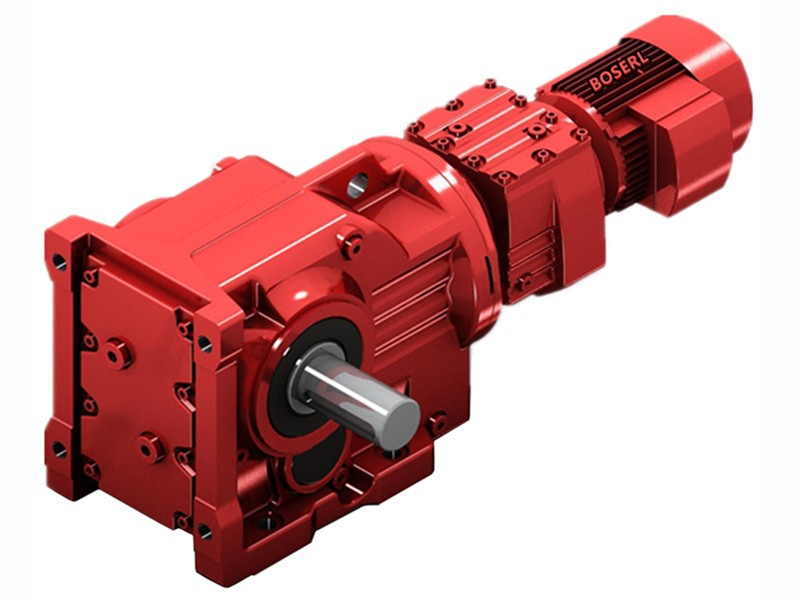

K168R108減速機
K168R108減速機電機功率：K168R108Y11KW減速機,K168R108Y15KW減速機,K168R108Y18.5KW減速機,K168R108Y22KW減速機,K168R108Y30KW減速機,K168R108Y37KW減速機,K168R108Y45KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
K168R108減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y11KW | 318 | 11KW | 4.60r/min | 21000N.m | 1,283kg | 150000N | 1.50 |
| K168R108-Y11KW | 278 | 11KW | 5.30r/min | 18200N.m | 1,283kg | 150000N | 1.75 |
| K168R108-Y11KW | 244 | 11KW | 6.00r/min | 15800N.m | 1,283kg | 150000N | 2.00 |
| K168R108-Y11KW | 213 | 11KW | 6.90r/min | 13800N.m | 1,283kg | 150000N | 2.30 |
| K168R108-Y11KW | 206 | 11KW | 7.20r/min | 13400N.m | 1,283kg | 150000N | 2.40 |
K168R108減速機配15KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y15KW | 318 | 15KW | 4.60r/min | 28900N.m | 1,303kg | 150000N | 1.10 |
| K168R108-Y15KW | 278 | 15KW | 5.30r/min | 25200N.m | 1,303kg | 150000N | 1.25 |
| K168R108-Y15KW | 244 | 15KW | 6.00r/min | 21800N.m | 1,303kg | 150000N | 1.45 |
| K168R108-Y15KW | 213 | 15KW | 6.90r/min | 19000N.m | 1,303kg | 150000N | 1.70 |
| K168R108-Y15KW | 206 | 15KW | 7.10r/min | 18600N.m | 1,303kg | 150000N | 1.70 |
| K168R108-Y15KW | 180 | 15KW | 8.10r/min | 16000N.m | 1,303kg | 150000N | 2.00 |
| K168R108-Y15KW | 160 | 15KW | 9.20r/min | 14500N.m | 1,303kg | 150000N | 2.20 |
K168R108減速機配18.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y18.5KW | 318 | 18.5KW | 4.60r/min | 35800N.m | 1,340kg | 150000N | 0.90 |
| K168R108-Y18.5KW | 278 | 18.5KW | 5.30r/min | 31200N.m | 1,340kg | 150000N | 1.00 |
| K168R108-Y18.5KW | 244 | 18.5KW | 6.00r/min | 27000N.m | 1,340kg | 150000N | 1.20 |
| K168R108-Y18.5KW | 213 | 18.5KW | 6.90r/min | 23600N.m | 1,340kg | 150000N | 1.35 |
| K168R108-Y18.5KW | 206 | 18.5KW | 7.10r/min | 23000N.m | 1,340kg | 150000N | 1.40 |
| K168R108-Y18.5KW | 180 | 18.5KW | 8.10r/min | 19900N.m | 1,340kg | 150000N | 1.60 |
| K168R108-Y18.5KW | 160 | 18.5KW | 9.20r/min | 17900N.m | 1,340kg | 150000N | 1.80 |
| K168R108-Y18.5KW | 135 | 18.5KW | 11.0r/min | 15100N.m | 1,340kg | 150000N | 2.10 |
| K168R108-Y18.5KW | 118 | 18.5KW | 12.0r/min | 13200N.m | 1,340kg | 150000N | 2.40 |
K168R108減速機配22KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y22KW | 278 | 22KW | 5.30r/min | 36900N.m | 1,353kg | 150000N | 0.85 |
| K168R108-Y22KW | 244 | 22KW | 6.00r/min | 32000N.m | 1,353kg | 150000N | 1.00 |
| K168R108-Y22KW | 213 | 22KW | 6.90r/min | 27900N.m | 1,353kg | 150000N | 1.15 |
| K168R108-Y22KW | 206 | 22KW | 7.20r/min | 27200N.m | 1,353kg | 150000N | 1.15 |
| K168R108-Y22KW | 180 | 22KW | 8.20r/min | 23500N.m | 1,353kg | 150000N | 1.35 |
| K168R108-Y22KW | 160 | 22KW | 9.20r/min | 21200N.m | 1,353kg | 150000N | 1.50 |
| K168R108-Y22KW | 135 | 22KW | 11.0r/min | 17900N.m | 1,353kg | 150000N | 1.80 |
| K168R108-Y22KW | 118 | 22KW | 12.0r/min | 15600N.m | 1,353kg | 150000N | 2.00 |
K168R108減速機配30KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y30KW | 213 | 30KW | 6.90r/min | 38200N.m | 1,421kg | 150000N | 0.85 |
| K168R108-Y30KW | 206 | 30KW | 7.20r/min | 37300N.m | 1,421kg | 150000N | 0.85 |
| K168R108-Y30KW | 180 | 30KW | 8.20r/min | 32300N.m | 1,421kg | 150000N | 1.00 |
| K168R108-Y30KW | 160 | 30KW | 9.20r/min | 29000N.m | 1,421kg | 150000N | 1.10 |
| K168R108-Y30KW | 135 | 30KW | 11.0r/min | 24500N.m | 1,421kg | 150000N | 1.30 |
| K168R108-Y30KW | 118 | 30KW | 12.0r/min | 21400N.m | 1,421kg | 150000N | 1.50 |
K168R108減速機配37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y37KW | 180 | 37KW | 8.20r/min | 39800N.m | 1,468kg | 150000N | 0.80 |
| K168R108-Y37KW | 160 | 37KW | 9.20r/min | 35800N.m | 1,468kg | 150000N | 0.90 |
| K168R108-Y37KW | 135 | 37KW | 11.0r/min | 30300N.m | 1,468kg | 150000N | 1.05 |
| K168R108-Y37KW | 118 | 37KW | 12.0r/min | 26400N.m | 1,468kg | 150000N | 1.20 |
K168R108減速機配45KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K168R108-Y45KW | 135 | 45KW | 11.0r/min | 36900N.m | 1,503kg | 150000N | 0.85 |
| K168R108-Y45KW | 118 | 45KW | 12.0r/min | 32200N.m | 1,503kg | 150000N | 1.00 |
K168R108減速器減速比：118比減速器,135比減速器,160比減速器,180比減速器,206比減速器,213比減速器,244比減速器,278比減速器,318比減速器。
K168R108減速機電機安裝尺寸：輸出軸+鍵Φ169（可定做），高786*寬830（帶輸出軸）*長1192直角減速機
K168R108減速電機輸出轉數：4.6轉減速電機,5.3轉減速電機,6轉減速電機,6.9轉減速電機,7.1轉減速電機,7.2轉減速電機,8.1轉減速電機,8.2轉減速電機,9.2轉減速電機,11轉減速電機,12轉減速電機。
K168R108減速箱電機輸出扭矩：13200N.m減速箱,13400N.m減速箱,13800N.m減速箱,14500N.m減速箱,15100N.m減速箱,15600N.m減速箱,15800N.m減速箱,16000N.m減速箱,17900N.m減速箱,18200N.m減速箱,18600N.m減速箱,19000N.m減速箱,19900N.m減速箱,21000N.m減速箱,21200N.m減速箱,21400N.m減速箱,21800N.m減速箱,23000N.m減速箱,23500N.m減速箱,23600N.m減速箱,24500N.m減速箱,25200N.m減速箱,26400N.m減速箱,27000N.m減速箱,27200N.m減速箱,27900N.m減速箱,28900N.m減速箱,29000N.m減速箱,30300N.m減速箱,31200N.m減速箱,32000N.m減速箱,32200N.m減速箱,32300N.m減速箱,35800N.m減速箱,36900N.m減速箱,37300N.m減速箱,38200N.m減速箱,39800N.m減速箱。
K168R108齒輪減速馬達電機各種輸出實物圖：
K168R108減速馬達型號：
KH167R107DM160L4,KH167R107DM160M4,KH167R107DM160MC4,KH167R107DM160S4,KH167R107DM180L4,KH167R107DM180LC4,KH167R107DM180M4,KH167R107DM180S4,KH167R107DM200L4,KH167R107DM200M4,KH167R107DM225M4,KH167R107DM225S4,KH167R107DM250M4,KH167R107DR160L4,KH167R107DR160M4,KH167R107DR160MC4,KH167R107DR160S4,KH167R107DR180L4,KH167R107DR180LC4,KH167R107DR180M4,KH167R107DR180S4,KH167R107DR200L4,KH167R107DR200M4,KH167R107DR225M4,KH167R107DR225S4,KH167R107DR250M4,KH167R107DRE160L4,KH167R107DRE160M4,KH167R107DRE160MC4,KH167R107DRE160S4,KH167R107DRE180L4,KH167R107DRE180LC4,KH167R107DRE180M4,KH167R107DRE180S4,KH167R107DRE200L4,KH167R107DRE200M4,KH167R107DRE225M4,KH167R107DRE225S4,KH167R107DRE250M4,KH167R107DRN160L4,KH167R107DRN160M4,KH167R107DRN160MC4,KH167R107DRN160S4,KH167R107DRN180L4,KH167R107DRN180LC4,KH167R107DRN180M4,KH167R107DRN180S4,KH167R107DRN200L4,KH167R107DRN200M4,KH167R107DRN225M4,KH167R107DRN225S4,KH167R107DRN250M4,KH167R107DRS160L4,KH167R107DRS160M4,KH167R107DRS160MC4,KH167R107DRS160S4,KH167R107DRS180L4,KH167R107DRS180LC4,KH167R107DRS180M4,KH167R107DRS180S4,KH167R107DRS200L4,KH167R107DRS200M4,KH167R107DRS225M4,KH167R107DRS225S4,KH167R107DRS250M4,KH167R107DT160L4,KH167R107DT160M4,KH167R107DT160MC4,KH167R107DT160S4,KH167R107DT180L4,KH167R107DT180LC4,KH167R107DT180M4,KH167R107DT180S4,KH167R107DT200L4,KH167R107DT200M4,KH167R107DT225M4,KH167R107DT225S4,KH167R107DT250M4,KH167R107DV160L4,KH167R107DV160M4,KH167R107DV160MC4,KH167R107DV160S4,KH167R107DV180L4,KH167R107DV180LC4,KH167R107DV180M4,KH167R107DV180S4,KH167R107DV200L4,KH167R107DV200M4,KH167R107DV225M4,KH167R107DV225S4,KH167R107DV250M4,KH167R107DVE160L4,KH167R107DVE160M4,KH167R107DVE160MC4,KH167R107DVE160S4,KH167R107DVE180L4,KH167R107DVE180LC4,KH167R107DVE180M4,KH167R107DVE180S4,KH167R107DVE200L4,KH167R107DVE200M4,KH167R107DVE225M4,KH167R107DVE225S4,KH167R107DVE250M4,KH167RF107-Y11KW,KH167RF107-Y11KW,KH167RF107-Y11KW,KH167RF107-Y11KW,KH167RF107-Y15KW,KH167RF107-Y15KW,KH167RF107-Y15KW,KH167RF107-Y15KW,KH167RF107-Y160M4,KH167RF107-Y18.5KW,KH167RF107-Y18.5KW,KH167RF107-Y18.5KW,KH167RF107-Y18.5KW,KH167RF107-Y180M4,KH167RF107-Y200M4,KH167RF107-Y225M4,KH167RF107-Y22KW,KH167RF107-Y22KW,KH167RF107-Y22KW,KH167RF107-Y22KW,KH167RF107-Y250M4,KH167RF107-Y30KW,KH167RF107-Y30KW,KH167RF107-Y30KW,KH167RF107-Y30KW,KH167RF107-Y37KW,KH167RF107-Y37KW,KH167RF107-Y37KW,KH167RF107-Y37KW,KH167RF107-Y45KW,KH167RF107-Y45KW,KH167RF107-Y45KW,KH167RF107-Y45KW,KH167RF107-Y55KW,KH167RF107-Y55KW,KH167RF107-Y55KW,KH167RF107-Y55KW,KH167RF107-YEJ160M4,KH167RF107-YEJ180M4,KH167RF107-YEJ200L4,KH167RF107-YEJ225M4,KH167RF107-YEJ250M4,KH167RF107-YVP160M4,KH167RF107-YVP180M4,KH167RF107-YVP200L4,KH167RF107-YVP225M4,KH167RF107-YVP250M4,KH167RF107-YVPEJ160M4,KH167RF107-YVPEJ180M4,KH167RF107-YVPEJ200L4,KH167RF107-YVPEJ225M4,KH167RF107-YVPEJ250M4,KHF167R107DM160L4,KHF167R107DM160M4,KHF167R107DM160MC4,KHF167R107DM160S4,KHF167R107DM180L4,KHF167R107DM180LC4,KHF167R107DM180M4,KHF167R107DM180S4,KHF167R107DM200L4,KHF167R107DM200M4,KHF167R107DM225M4,KHF167R107DM225S4,KHF167R107DM250M4,KHF167R107DR160L4,KHF167R107DR160M4,KHF167R107DR160MC4,KHF167R107DR160S4,KHF167R107DR180L4,KHF167R107DR180LC4,KHF167R107DR180M4,KHF167R107DR180S4,KHF167R107DR200L4,KHF167R107DR200M4,KHF167R107DR225M4,KHF167R107DR225S4,KHF167R107DR250M4,KHF167R107DRE160L4,KHF167R107DRE160M4,KHF167R107DRE160MC4,KHF167R107DRE160S4,KHF167R107DRE180L4,KHF167R107DRE180LC4,KHF167R107DRE180M4,KHF167R107DRE180S4,KHF167R107DRE200L4,KHF167R107DRE200M4,KHF167R107DRE225M4,KHF167R107DRE225S4,KHF167R107DRE250M4,KHF167R107DRN160L4,KHF167R107DRN160M4,KHF167R107DRN160MC4,KHF167R107DRN160S4,KHF167R107DRN180L4,KHF167R107DRN180LC4,KHF167R107DRN180M4,KHF167R107DRN180S4,KHF167R107DRN200L4,KHF167R107DRN200M4,KHF167R107DRN225M4,KHF167R107DRN225S4,KHF167R107DRN250M4,KHF167R107DRS160L4,KHF167R107DRS160M4,KHF167R107DRS160MC4,KHF167R107DRS160S4,KHF167R107DRS180L4,KHF167R107DRS180LC4,KHF167R107DRS180M4,KHF167R107DRS180S4,KHF167R107DRS200L4,KHF167R107DRS200M4,KHF167R107DRS225M4,KHF167R107DRS225S4,KHF167R107DRS250M4,KHF167R107DT160L4,KHF167R107DT160M4,KHF167R107DT160MC4,KHF167R107DT160S4,KHF167R107DT180L4,KHF167R107DT180LC4,KHF167R107DT180M4,KHF167R107DT180S4,KHF167R107DT200L4,KHF167R107DT200M4,KHF167R107DT225M4,KHF167R107DT225S4,KHF167R107DT250M4,KHF167R107DV160L4,KHF167R107DV160M4,KHF167R107DV160MC4,KHF167R107DV160S4,KHF167R107DV180L4,KHF167R107DV180LC4,KHF167R107DV180M4,KHF167R107DV180S4,KHF167R107DV200L4,KHF167R107DV200M4,KHF167R107DV225M4,KHF167R107DV225S4,KHF167R107DV250M4,KHF167R107DVE160L4,KHF167R107DVE160M4,KHF167R107DVE160MC4,KHF167R107DVE160S4,KHF167R107DVE180L4,KHF167R107DVE180LC4,KHF167R107DVE180M4,KHF167R107DVE180S4,KHF167R107DVE200L4,KHF167R107DVE200M4,KHF167R107DVE225M4,KHF167R107DVE225S4,KHF167R107DVE250M4,KHF167RF107-Y11KW,KHF167RF107-Y11KW,KHF167RF107-Y11KW,KHF167RF107-Y11KW,KHF167RF107-Y15KW,KHF167RF107-Y15KW,KHF167RF107-Y15KW,KHF167RF107-Y15KW,KHF167RF107-Y160M4,KHF167RF107-Y18.5KW,KHF167RF107-Y18.5KW,KHF167RF107-Y18.5KW,KHF167RF107-Y18.5KW,KHF167RF107-Y180M4,KHF167RF107-Y200M4,KHF167RF107-Y225M4,KHF167RF107-Y22KW,KHF167RF107-Y22KW,KHF167RF107-Y22KW,KHF167RF107-Y22KW,KHF167RF107-Y250M4,KHF167RF107-Y30KW,KHF167RF107-Y30KW,KHF167RF107-Y30KW,KHF167RF107-Y30KW,KHF167RF107-Y37KW,KHF167RF107-Y37KW,KHF167RF107-Y37KW,KHF167RF107-Y37KW,KHF167RF107-Y45KW,KHF167RF107-Y45KW,KHF167RF107-Y45KW,KHF167RF107-Y45KW,KHF167RF107-Y55KW,KHF167RF107-Y55KW,KHF167RF107-Y55KW,KHF167RF107-Y55KW,KHF167RF107-YEJ160M4,KHF167RF107-YEJ180M4,KHF167RF107-YEJ200L4,KHF167RF107-YEJ225M4,KHF167RF107-YEJ250M4,KHF167RF107-YVP160M4,KHF167RF107-YVP180M4,KHF167RF107-YVP200L4,KHF167RF107-YVP225M4,KHF167RF107-YVP250M4,KHF167RF107-YVPEJ160M4,KHF167RF107-YVPEJ180M4,KHF167RF107-YVPEJ200L4,KHF167RF107-YVPEJ225M4,KHF167RF107-YVPEJ250M4,KT167R107DM160L4,KT167R107DM160M4,KT167R107DM160MC4,KT167R107DM160S4,KT167R107DM180L4,KT167R107DM180LC4,KT167R107DM180M4,KT167R107DM180S4,KT167R107DM200L4,KT167R107DM200M4,KT167R107DM225M4,KT167R107DM225S4,KT167R107DM250M4,KT167R107DR160L4,KT167R107DR160M4,KT167R107DR160MC4,KT167R107DR160S4,KT167R107DR180L4,KT167R107DR180LC4,KT167R107DR180M4,KT167R107DR180S4,KT167R107DR200L4,KT167R107DR200M4,KT167R107DR225M4,KT167R107DR225S4,KT167R107DR250M4,KT167R107DRE160L4,KT167R107DRE160M4,KT167R107DRE160MC4,KT167R107DRE160S4,KT167R107DRE180L4,KT167R107DRE180LC4,KT167R107DRE180M4,KT167R107DRE180S4,KT167R107DRE200L4,KT167R107DRE200M4,KT167R107DRE225M4,KT167R107DRE225S4,KT167R107DRE250M4,KT167R107DRN160L4,KT167R107DRN160M4,KT167R107DRN160MC4,KT167R107DRN160S4,KT167R107DRN180L4,KT167R107DRN180LC4,KT167R107DRN180M4,KT167R107DRN180S4,KT167R107DRN200L4,KT167R107DRN200M4,KT167R107DRN225M4,KT167R107DRN225S4,KT167R107DRN250M4,KT167R107DRS160L4,KT167R107DRS160M4,KT167R107DRS160MC4,KT167R107DRS160S4,KT167R107DRS180L4,KT167R107DRS180LC4,KT167R107DRS180M4,KT167R107DRS180S4,KT167R107DRS200L4,KT167R107DRS200M4,KT167R107DRS225M4,KT167R107DRS225S4,KT167R107DRS250M4,KT167R107DT160L4,KT167R107DT160M4,KT167R107DT160MC4,KT167R107DT160S4,KT167R107DT180L4,KT167R107DT180LC4,KT167R107DT180M4,KT167R107DT180S4,KT167R107DT200L4,KT167R107DT200M4,KT167R107DT225M4,KT167R107DT225S4,KT167R107DT250M4,KT167R107DV160L4,KT167R107DV160M4,KT167R107DV160MC4,KT167R107DV160S4,KT167R107DV180L4,KT167R107DV180LC4,KT167R107DV180M4,KT167R107DV180S4,KT167R107DV200L4,KT167R107DV200M4,KT167R107DV225M4,KT167R107DV225S4,KT167R107DV250M4,KT167R107DVE160L4,KT167R107DVE160M4,KT167R107DVE160MC4,KT167R107DVE160S4,KT167R107DVE180L4,KT167R107DVE180LC4,KT167R107DVE180M4,KT167R107DVE180S4,KT167R107DVE200L4,KT167R107DVE200M4,KT167R107DVE225M4,KT167R107DVE225S4,KT167R107DVE250M4,KT167RF107-Y11KW,KT167RF107-Y11KW,KT167RF107-Y11KW,KT167RF107-Y11KW,KT167RF107-Y15KW,KT167RF107-Y15KW,KT167RF107-Y15KW,KT167RF107-Y15KW,KT167RF107-Y160M4,KT167RF107-Y18.5KW,KT167RF107-Y18.5KW,KT167RF107-Y18.5KW,KT167RF107-Y18.5KW,KT167RF107-Y180M4,KT167RF107-Y200M4,KT167RF107-Y225M4,KT167RF107-Y22KW,KT167RF107-Y22KW,KT167RF107-Y22KW,KT167RF107-Y22KW,KT167RF107-Y250M4,KT167RF107-Y30KW,KT167RF107-Y30KW,KT167RF107-Y30KW,KT167RF107-Y30KW,KT167RF107-Y37KW,KT167RF107-Y37KW,KT167RF107-Y37KW,KT167RF107-Y37KW,KT167RF107-Y45KW,KT167RF107-Y45KW,KT167RF107-Y45KW,KT167RF107-Y45KW,KT167RF107-Y55KW,KT167RF107-Y55KW,KT167RF107-Y55KW,KT167RF107-Y55KW,KT167RF107-YEJ160M4,KT167RF107-YEJ180M4,KT167RF107-YEJ200L4,KT167RF107-YEJ225M4,KT167RF107-YEJ250M4,KT167RF107-YVP160M4,KT167RF107-YVP180M4,KT167RF107-YVP200L4,KT167RF107-YVP225M4,KT167RF107-YVP250M4,KT167RF107-YVPEJ160M4,KT167RF107-YVPEJ180M4,KT167RF107-YVPEJ200L4,KT167RF107-YVPEJ225M4,KT167RF107-YVPEJ250M4,KVF167R107DM160L4,KVF167R107DM160M4,KVF167R107DM160MC4,KVF167R107DM160S4,KVF167R107DM180L4,KVF167R107DM180LC4,KVF167R107DM180M4,KVF167R107DM180S4,KVF167R107DM200L4,KVF167R107DM200M4,KVF167R107DM225M4,KVF167R107DM225S4,KVF167R107DM250M4,KVF167R107DR160L4,KVF167R107DR160M4,KVF167R107DR160MC4,KVF167R107DR160S4,KVF167R107DR180L4,KVF167R107DR180LC4,KVF167R107DR180M4,KVF167R107DR180S4,KVF167R107DR200L4,KVF167R107DR200M4,KVF167R107DR225M4,KVF167R107DR225S4,KVF167R107DR250M4,KVF167R107DRE160L4,KVF167R107DRE160M4,KVF167R107DRE160MC4,KVF167R107DRE160S4,KVF167R107DRE180L4,KVF167R107DRE180LC4,KVF167R107DRE180M4,KVF167R107DRE180S4,KVF167R107DRE200L4,KVF167R107DRE200M4,KVF167R107DRE225M4,KVF167R107DRE225S4,KVF167R107DRE250M4,KVF167R107DRN160L4,KVF167R107DRN160M4,KVF167R107DRN160MC4,KVF167R107DRN160S4,KVF167R107DRN180L4,KVF167R107DRN180LC4,KVF167R107DRN180M4,KVF167R107DRN180S4,KVF167R107DRN200L4,KVF167R107DRN200M4,KVF167R107DRN225M4,KVF167R107DRN225S4,KVF167R107DRN250M4,KVF167R107DRS160L4,KVF167R107DRS160M4,KVF167R107DRS160MC4,KVF167R107DRS160S4,KVF167R107DRS180L4,KVF167R107DRS180LC4,KVF167R107DRS180M4,KVF167R107DRS180S4,KVF167R107DRS200L4,KVF167R107DRS200M4,KVF167R107DRS225M4,KVF167R107DRS225S4,KVF167R107DRS250M4,KVF167R107DT160L4,KVF167R107DT160M4,KVF167R107DT160MC4,KVF167R107DT160S4,KVF167R107DT180L4,KVF167R107DT180LC4,KVF167R107DT180M4,KVF167R107DT180S4,KVF167R107DT200L4,KVF167R107DT200M4,KVF167R107DT225M4,KVF167R107DT225S4,KVF167R107DT250M4,KVF167R107DV160L4,KVF167R107DV160M4,KVF167R107DV160MC4,KVF167R107DV160S4,KVF167R107DV180L4,KVF167R107DV180LC4,KVF167R107DV180M4,KVF167R107DV180S4,KVF167R107DV200L4,KVF167R107DV200M4,KVF167R107DV225M4,KVF167R107DV225S4,KVF167R107DV250M4,KVF167R107DVE160L4,KVF167R107DVE160M4,KVF167R107DVE160MC4,KVF167R107DVE160S4,KVF167R107DVE180L4,KVF167R107DVE180LC4,KVF167R107DVE180M4,KVF167R107DVE180S4,KVF167R107DVE200L4,KVF167R107DVE200M4,KVF167R107DVE225M4,KVF167R107DVE225S4,KVF167R107DVE250M4,KVF167RF107-Y11KW,KVF167RF107-Y11KW,KVF167RF107-Y11KW,KVF167RF107-Y11KW,KVF167RF107-Y15KW,KVF167RF107-Y15KW,KVF167RF107-Y15KW,KVF167RF107-Y15KW,KVF167RF107-Y160M4,KVF167RF107-Y18.5KW,KVF167RF107-Y18.5KW,KVF167RF107-Y18.5KW,KVF167RF107-Y18.5KW,KVF167RF107-Y180M4,KVF167RF107-Y200M4,KVF167RF107-Y225M4,KVF167RF107-Y22KW,KVF167RF107-Y22KW,KVF167RF107-Y22KW,KVF167RF107-Y22KW,KVF167RF107-Y250M4,KVF167RF107-Y30KW,KVF167RF107-Y30KW,KVF167RF107-Y30KW,KVF167RF107-Y30KW,KVF167RF107-Y37KW,KVF167RF107-Y37KW,KVF167RF107-Y37KW,KVF167RF107-Y37KW,KVF167RF107-Y45KW,KVF167RF107-Y45KW,KVF167RF107-Y45KW,KVF167RF107-Y45KW,KVF167RF107-Y55KW,KVF167RF107-Y55KW,KVF167RF107-Y55KW,KVF167RF107-Y55KW,KVF167RF107-YEJ160M4,KVF167RF107-YEJ180M4,KVF167RF107-YEJ200L4,KVF167RF107-YEJ225M4,KVF167RF107-YEJ250M4,KVF167RF107-YVP160M4,KVF167RF107-YVP180M4,KVF167RF107-YVP200L4,KVF167RF107-YVP225M4,KVF167RF107-YVP250M4,KVF167RF107-YVPEJ160M4,KVF167RF107-YVPEJ180M4,KVF167RF107-YVPEJ200L4,KVF167RF107-YVPEJ225M4,KVF167RF107-YVPEJ250M4,KV167R107DM160L4,KV167R107DM160M4,KV167R107DM160MC4,KV167R107DM160S4,KV167R107DM180L4,KV167R107DM180LC4,KV167R107DM180M4,KV167R107DM180S4,KV167R107DM200L4,KV167R107DM200M4,KV167R107DM225M4,KV167R107DM225S4,KV167R107DM250M4,KV167R107DR160L4,KV167R107DR160M4,KV167R107DR160MC4,KV167R107DR160S4,KV167R107DR180L4,KV167R107DR180LC4,KV167R107DR180M4,KV167R107DR180S4,KV167R107DR200L4,KV167R107DR200M4,KV167R107DR225M4,KV167R107DR225S4,KV167R107DR250M4,KV167R107DRE160L4,KV167R107DRE160M4,KV167R107DRE160MC4,KV167R107DRE160S4,KV167R107DRE180L4,KV167R107DRE180LC4,KV167R107DRE180M4,KV167R107DRE180S4,KV167R107DRE200L4,KV167R107DRE200M4,KV167R107DRE225M4,KV167R107DRE225S4,KV167R107DRE250M4,KV167R107DRN160L4,KV167R107DRN160M4,KV167R107DRN160MC4,KV167R107DRN160S4,KV167R107DRN180L4,KV167R107DRN180LC4,KV167R107DRN180M4,KV167R107DRN180S4,KV167R107DRN200L4,KV167R107DRN200M4,KV167R107DRN225M4,KV167R107DRN225S4,KV167R107DRN250M4,KV167R107DRS160L4,KV167R107DRS160M4,KV167R107DRS160MC4,KV167R107DRS160S4,KV167R107DRS180L4,KV167R107DRS180LC4,KV167R107DRS180M4,KV167R107DRS180S4,KV167R107DRS200L4,KV167R107DRS200M4,KV167R107DRS225M4,KV167R107DRS225S4,KV167R107DRS250M4,KV167R107DT160L4,KV167R107DT160M4,KV167R107DT160MC4,KV167R107DT160S4,KV167R107DT180L4,KV167R107DT180LC4,KV167R107DT180M4,KV167R107DT180S4,KV167R107DT200L4,KV167R107DT200M4,KV167R107DT225M4,KV167R107DT225S4,KV167R107DT250M4,KV167R107DV160L4,KV167R107DV160M4,KV167R107DV160MC4,KV167R107DV160S4,KV167R107DV180L4,KV167R107DV180LC4,KV167R107DV180M4,KV167R107DV180S4,KV167R107DV200L4,KV167R107DV200M4,KV167R107DV225M4,KV167R107DV225S4,KV167R107DV250M4,KV167R107DVE160L4,KV167R107DVE160M4,KV167R107DVE160MC4,KV167R107DVE160S4,KV167R107DVE180L4,KV167R107DVE180LC4,KV167R107DVE180M4,KV167R107DVE180S4,KV167R107DVE200L4,KV167R107DVE200M4,KV167R107DVE225M4,KV167R107DVE225S4,KV167R107DVE250M4,KV167RF107-Y11KW,KV167RF107-Y11KW,KV167RF107-Y11KW,KV167RF107-Y11KW,KV167RF107-Y15KW,KV167RF107-Y15KW,KV167RF107-Y15KW,KV167RF107-Y15KW,KV167RF107-Y160M4,KV167RF107-Y18.5KW,KV167RF107-Y18.5KW,KV167RF107-Y18.5KW,KV167RF107-Y18.5KW,KV167RF107-Y180M4,KV167RF107-Y200M4,KV167RF107-Y225M4,KV167RF107-Y22KW,KV167RF107-Y22KW,KV167RF107-Y22KW,KV167RF107-Y22KW,KV167RF107-Y250M4,KV167RF107-Y30KW,KV167RF107-Y30KW,KV167RF107-Y30KW,KV167RF107-Y30KW,KV167RF107-Y37KW,KV167RF107-Y37KW,KV167RF107-Y37KW,KV167RF107-Y37KW,KV167RF107-Y45KW,KV167RF107-Y45KW,KV167RF107-Y45KW,KV167RF107-Y45KW,KV167RF107-Y55KW,KV167RF107-Y55KW,KV167RF107-Y55KW,KV167RF107-Y55KW,KV167RF107-YEJ160M4,KV167RF107-YEJ180M4,KV167RF107-YEJ200L4,KV167RF107-YEJ225M4,KV167RF107-YEJ250M4,KV167RF107-YVP160M4,KV167RF107-YVP180M4,KV167RF107-YVP200L4,KV167RF107-YVP225M4,KV167RF107-YVP250M4,KV167RF107-YVPEJ160M4,KV167RF107-YVPEJ180M4,KV167RF107-YVPEJ200L4,KV167RF107-YVPEJ225M4,KV167RF107-YVPEJ250M4,KH167/TR107DM160L4,KH167/TR107DM160M4,KH167/TR107DM160MC4,KH167/TR107DM160S4,KH167/TR107DM180L4,KH167/TR107DM180LC4,KH167/TR107DM180M4,KH167/TR107DM180S4,KH167/TR107DM200L4,KH167/TR107DM200M4,KH167/TR107DM225M4,KH167/TR107DM225S4,KH167/TR107DM250M4,KH167/TR107DR160L4,KH167/TR107DR160M4,KH167/TR107DR160MC4,KH167/TR107DR160S4,KH167/TR107DR180L4,KH167/TR107DR180LC4,KH167/TR107DR180M4,KH167/TR107DR180S4,KH167/TR107DR200L4,KH167/TR107DR200M4,KH167/TR107DR225M4,KH167/TR107DR225S4,KH167/TR107DR250M4,KH167/TR107DRE160L4,KH167/TR107DRE160M4,KH167/TR107DRE160MC4,KH167/TR107DRE160S4,KH167/TR107DRE180L4,KH167/TR107DRE180LC4,KH167/TR107DRE180M4,KH167/TR107DRE180S4,KH167/TR107DRE200L4,KH167/TR107DRE200M4,KH167/TR107DRE225M4,KH167/TR107DRE225S4,KH167/TR107DRE250M4,KH167/TR107DRN160L4,KH167/TR107DRN160M4,KH167/TR107DRN160MC4,KH167/TR107DRN160S4,KH167/TR107DRN180L4,KH167/TR107DRN180LC4,KH167/TR107DRN180M4,KH167/TR107DRN180S4,KH167/TR107DRN200L4,KH167/TR107DRN200M4,KH167/TR107DRN225M4,KH167/TR107DRN225S4,KH167/TR107DRN250M4,KH167/TR107DRS160L4,KH167/TR107DRS160M4,KH167/TR107DRS160MC4,KH167/TR107DRS160S4,KH167/TR107DRS180L4,KH167/TR107DRS180LC4,KH167/TR107DRS180M4,KH167/TR107DRS180S4,KH167/TR107DRS200L4,KH167/TR107DRS200M4,KH167/TR107DRS225M4,KH167/TR107DRS225S4,KH167/TR107DRS250M4,KH167/TR107DT160L4,KH167/TR107DT160M4,KH167/TR107DT160MC4,KH167/TR107DT160S4,KH167/TR107DT180L4,KH167/TR107DT180LC4,KH167/TR107DT180M4,KH167/TR107DT180S4,KH167/TR107DT200L4,KH167/TR107DT200M4,KH167/TR107DT225M4,KH167/TR107DT225S4,KH167/TR107DT250M4,KH167/TR107DV160L4,KH167/TR107DV160M4,KH167/TR107DV160MC4,KH167/TR107DV160S4,KH167/TR107DV180L4,KH167/TR107DV180LC4,KH167/TR107DV180M4,KH167/TR107DV180S4,KH167/TR107DV200L4,KH167/TR107DV200M4,KH167/TR107DV225M4,KH167/TR107DV225S4,KH167/TR107DV250M4,KH167/TR107DVE160L4,KH167/TR107DVE160M4,KH167/TR107DVE160MC4,KH167/TR107DVE160S4,KH167/TR107DVE180L4,KH167/TR107DVE180LC4,KH167/TR107DVE180M4,KH167/TR107DVE180S4,KH167/TR107DVE200L4,KH167/TR107DVE200M4,KH167/TR107DVE225M4,KH167/TR107DVE225S4,KH167/TR107DVE250M4,KH167/TRF107-Y11KW,KH167/TRF107-Y11KW,KH167/TRF107-Y11KW,KH167/TRF107-Y11KW,KH167/TRF107-Y15KW,KH167/TRF107-Y15KW,KH167/TRF107-Y15KW,KH167/TRF107-Y15KW,KH167/TRF107-Y160M4,KH167/TRF107-Y18.5KW,KH167/TRF107-Y18.5KW,KH167/TRF107-Y18.5KW,KH167/TRF107-Y18.5KW,KH167/TRF107-Y180M4,KH167/TRF107-Y200M4,KH167/TRF107-Y225M4,KH167/TRF107-Y22KW,KH167/TRF107-Y22KW,KH167/TRF107-Y22KW,KH167/TRF107-Y22KW,KH167/TRF107-Y250M4,KH167/TRF107-Y30KW,KH167/TRF107-Y30KW,KH167/TRF107-Y30KW,KH167/TRF107-Y30KW,KH167/TRF107-Y37KW,KH167/TRF107-Y37KW,KH167/TRF107-Y37KW,KH167/TRF107-Y37KW,KH167/TRF107-Y45KW,KH167/TRF107-Y45KW,KH167/TRF107-Y45KW,KH167/TRF107-Y45KW,KH167/TRF107-Y55KW,KH167/TRF107-Y55KW,KH167/TRF107-Y55KW,KH167/TRF107-Y55KW,KH167/TRF107-YEJ160M4,KH167/TRF107-YEJ180M4,KH167/TRF107-YEJ200L4,KH167/TRF107-YEJ225M4,KH167/TRF107-YEJ250M4,KH167/TRF107-YVP160M4,KH167/TRF107-YVP180M4,KH167/TRF107-YVP200L4,KH167/TRF107-YVP225M4,KH167/TRF107-YVP250M4,KH167/TRF107-YVPEJ160M4,KH167/TRF107-YVPEJ180M4,KH167/TRF107-YVPEJ200L4,KH167/TRF107-YVPEJ225M4,KH167/TRF107-YVPEJ250M4。
K168R108減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.cdjrm.com/product/list-kxiliejiansuji-cn.html
推薦型號：K168減速機
關鍵詞:GK型減速機配電機一體式_螺旋錐齒輪減速器_K系列減速機_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速馬達型號：K38減速機,K48減速機,K58減速機,K68減速機,K78減速機,K88減速機,K98減速機,K108減速機,K128減速機,K158減速機,K168減速機,K188減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KH167R107 KT167R107 KV167R107 KHF167R107 KVF167R107 KH167/TR107
